That has a positive and progressive attitude to customer's fascination, our enterprise constantly improves our merchandise high quality to meet the demands of customers and further focuses on safety, reliability, environmental requirements, and innovation of China Plastic Containers Making Machine, Disposable Containers Making Machine, Fast Food Box Making Machine, Multi-Station Thermoforming Machine, Due to our good products and services, we have received good reputation and credibility from local and international customers. If you need more information and are interested in any of our products, please feel free to contact us. We look forward to becoming your supplier in the near future.

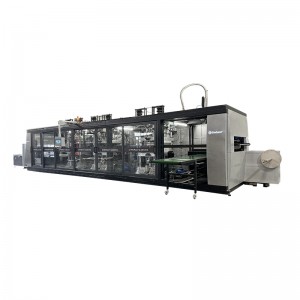

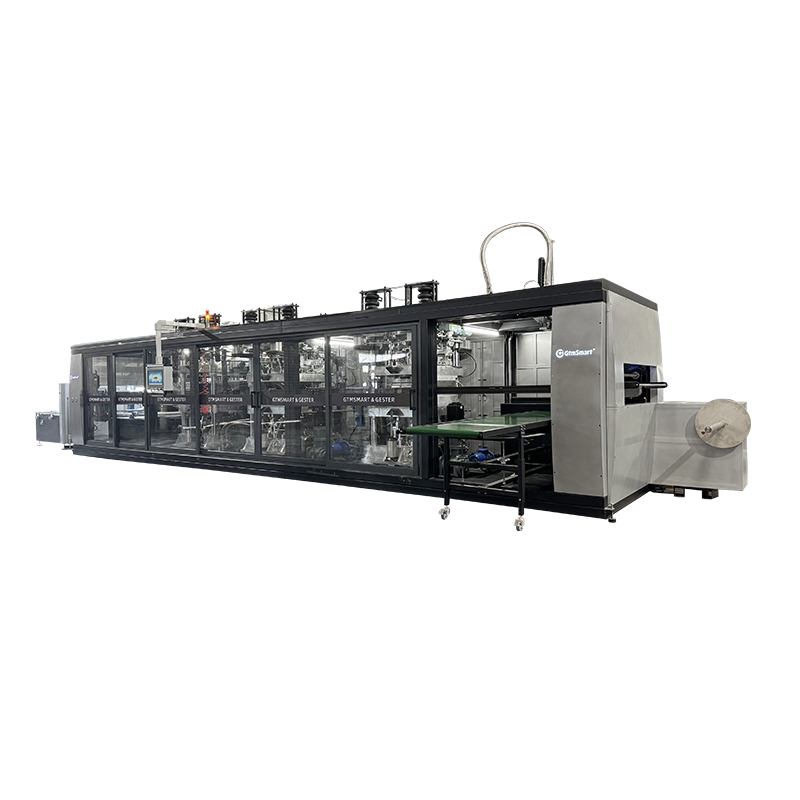

Four Stations Large PP Plastic Thermoforming Machine is forming, cutting and stacking in one line. It is completely driven by servo motor, stable operation, low noise, high efficiency, suitable for producing plastic trays, containers, boxes, lids, etc.
1.PP Plastic Thermoforming Machine: High degree of automation, production speed. By installing the mold to produce different products, to achieve more purposes of one machine.
2.Integration of mechanical and electrical, PLC control, high precision feeding by frequency conversion motor.
3.PP Thermoforming Machine Imported famous brand electrical components, pneumatic components, stable operation, reliable quality, long using life.
4.The thermoforming machines has compact structure, air pressure, forming, cutting, cooling, blow out finished product feature set in one module, make the product process short, high finished product level, accord with national health standards.
| Model |
HEY02-6040 |
HEY02-7860 |
| Max.Forming Area (mm2) |
600x400 |
780x600 |
| Working Station |
Forming, Punching, Cutting, Stacking |
|
| Applicable Material |
PS, PET, HIPS, PP, PLA, etc |
|
| Sheet Width (mm) | 350-810 | |
| Sheet Thickness (mm) | 0.2-1.5 | |
| Max. Dia. Of Sheet Roll (mm) | 800 | |
| Forming Mould Stroke(mm) | 120 for up mold and down mold | |
| Power Consumption | 60-70KW/H | |
| Max. Formed Depth (mm) | 100 | |
| Cutting Mould Stroke(mm) | 120 for up mold and down mold | |
| Max. Cutting Area (mm2) |
600x400 |
780x600 |
| Max. Mold Closing Force (T) | 50 | |
| Speed (cycle/min) | Max 30 | |
| Max. Capcity of Vacuum Pump | 200 m³/h | |
| Cooling System | Water Cooling | |
| Power Supply | 380V 50Hz 3 phase 4 wire | |
| Max. Heating Power (kw) | 140 | |
| Max. Power of Whole Machine (kw) | 170 | |
| Machine Dimension(mm) | 11000*2200*2690 | |
| Sheet Carrier Dimension(mm) | 2100*1800*1550 | |
| Weight of Whole Machine (T) | 15 | |
That has a positive and progressive attitude to customer's fascination, our enterprise constantly improves our merchandise high quality to meet the demands of customers and further focuses on safety, reliability, environmental requirements, and innovation of Supply OEM Automatic Multi-Station Tray /Container Thermoforming Machine with High Quality, All of the views and solutions is going to be significantly appreciated! The great cooperation could improve both of those of us into far better advancement!
