Features

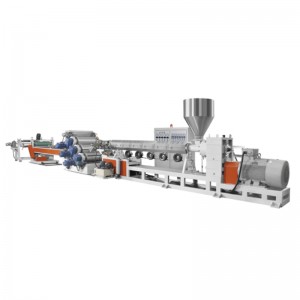

- HEY32 Series Plastic Sheet Extruding Machine is developed by the market demand. It is mainly applied to produce PP, PS, HIPS sheet.
- The screw of the extruding machine uses big ratio of length and diameter. It has good forming effect, even sheet thickness and same running speed.
- Bright surface of the pressing roller and even temperature of its surface to make sure that the sheet is clean and the thickness is equal.
- This plastic sheet extrusion includes screw extruder, 3-roller calendar, traction re-winder.
Technical Parameter
| Material | PP/PS/HIPS |
| Roller Length | 320*900mm |
| Sheet Width | ≤800mm |
| Sheet Thickness | PP 0.3-2.0mm |
| Screw Diameter | 105mm |
| Screw Length-Diameter Ratio | 1:34 |
| Total Power | 145kw |
| Heating Power | 70kw |
| Maximum Output | Base on 0.3-2.0mm PP material:250kg/h |
| Dimension | 13×1.8×2 (m) |
| Material | PP/PS/HIPS |
Applications
