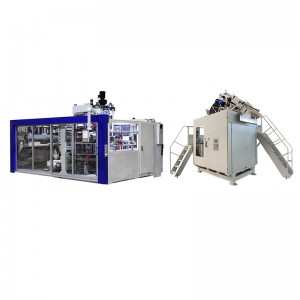

Forming Machine Main Technical Data
| Cycle speed maximum (with good CN mold) | Forming and cutting production cycle of up to 30 cycles/min. Single forming production cycle of up to 35 cycles/min. |
| Dry cycle speed | 45 cycles/min |
| Forming area maximum | 850x650mm |
| Forming area minimum | 400x300mm |
| Closing force (Forming station) | 400KN |
| Height of formed part above or below film level | 125mm/110mm |
| Forming station Top / Bottom table movement | 235mm |
| Film thickness range (depending on film properties) | 0.2-2mm |
| Film width maximum (parallel rails) | 880mm |
| Operation pressure | 6bar |
| Cutting, Punching, Stacking | |
| Max. Cutting Area (mm2) | 930mm*270mm |
| Max. Mould Area (mm2) | 1150mm*650mm |
| Max. Mould Weight | 1400KG |
| Max. Formed Depth (mm) | 125mm |
| Dry Speed (cycle/min) | Max 30 |
| Max. Dia. Of Sheet Roll (mm) | 950mm |
| Force of impact | 30 ton |
| Machine Dimensions | 5700X3600X3700MM |
| Machine Weights | 9 ton |
single station thermoforming machine advantage point
- Integrated forming, punching, stacking, and waste re-winding station, sheet stock treatment is more smooth, and energy is saved.
- Forming and cutting stations are used with firmly cast iron structure, matched with roller bearing's crankshaft to guarantee perfect forming, cutting.
- Forming station with independent servo-plug drive on upper table, gives you more flexible to adjustthe process, gets the best products.
Applications
