OEM Supply Automatic High Speed Plastic Lid Cover Flat Tray Fruits Clamshell Packing Box Pressure Vacuum Thermoforming Equipment Forming Machine

Model: HEY02
  • OEM Supply Automatic High Speed Plastic Lid Cover Flat Tray Fruits Clamshell Packing Box Pressure Vacuum Thermoforming Equipment Forming Machine
Inquiry Now

Product Detail

Product Tags

Video

By using a full scientific excellent administration method, great quality and fantastic religion, we get good reputation and occupied this discipline for Cheap Thermoforming Machine, Lid Vacuum Thermoforming Machine, Plastic Thermoforming Equipment, Pressure And Vacuume Thermoforming Machine, We'll continue to devote ourselves to market & product development and build a well-knit service to our customer to create a more prosperous future. Please contact us today to find out how we can work together.

Product Introduction

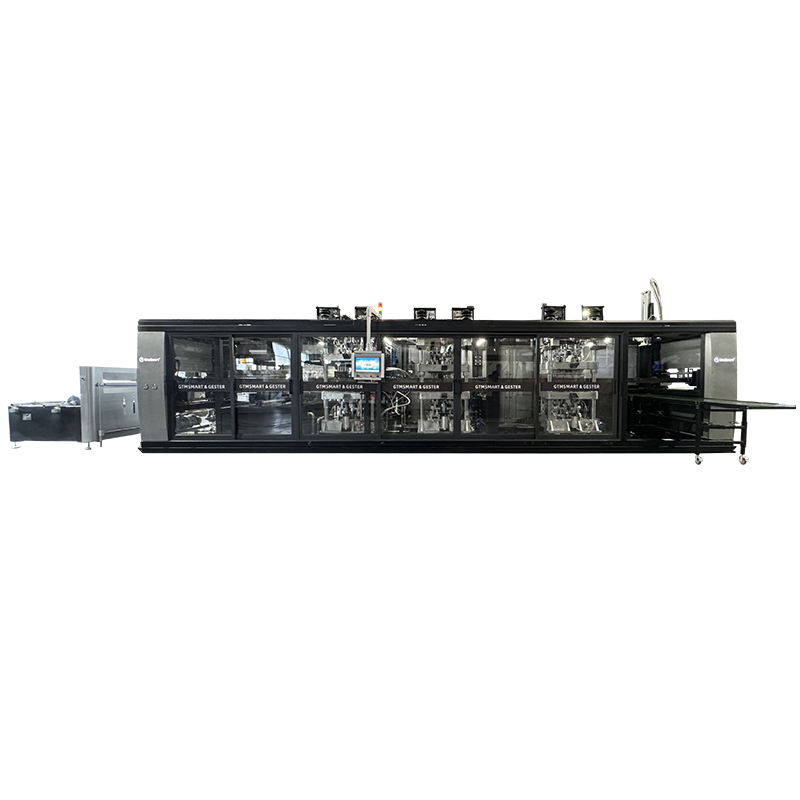

Four Stations Large PP Plastic Thermoforming Machine is forming, cutting and stacking in one line. It is completely driven by servo motor, stable operation, low noise, high efficiency, suitable for producing plastic trays, containers, boxes, lids, etc.

Feature

1.PP Plastic Thermoforming Machine: High degree of automation, production speed. By installing the mold to produce different products, to achieve more purposes of one machine.
2.Integration of mechanical and electrical, PLC control, high precision feeding by frequency conversion motor.
3.PP Thermoforming Machine Imported famous brand electrical components, pneumatic components, stable operation, reliable quality, long using life.
4.The thermoforming machines has compact structure, air pressure, forming, cutting, cooling, blow out finished product feature set in one module, make the product process short, high finished product level, accord with national health standards.

Key Specification

Model

HEY02-6040

HEY02-7860

Max.Forming Area (mm2)

600x400

780x600

Working Station

Forming, Punching, Cutting, Stacking

Applicable Material

PS, PET, HIPS, PP, PLA, etc

Sheet Width (mm) 350-810
Sheet Thickness (mm) 0.2-1.5
Max. Dia. Of Sheet Roll (mm) 800
Forming Mould Stroke(mm) 12for up mold and down mold
Power Consumption 60-70KW/H
Max. Formed Depth (mm) 100
Cutting Mould Stroke(mm) 12for up mold and down mold
Max. Cutting Area (mm2)

600x400

780x600

Max. Mold Closing Force (T) 50
Speed (cycle/min) Max 30
Max. Capcity of Vacuum Pump 200 m³/h
Cooling System Water Cooling
Power Supply 380V 50Hz 3 phase 4 wire
Max. Heating Power (kw) 140
Max. Power of Whole Machine (kw) 170
Machine Dimension(mm) 11000*2200*2690
Sheet Carrier Dimension(mm) 2100*1800*1550
Weight of Whole Machine (T) 15

By using a full scientific excellent administration method, great quality and fantastic religion, we get good reputation and occupied this discipline for OEM Supply Automatic High Speed Plastic Lid Cover Flat Tray Fruits Clamshell Packing Box Pressure Vacuum Thermoforming Equipment Forming Machine, Adhering into the business enterprise philosophy of 'customer initial, forge ahead', we sincerely welcome purchasers from at your home and abroad to cooperate with us.



Applications
  • Various types of lids
    app-img
  • Various types of lids
    app-img
  • Various types of lids
    app-img
  • Various types of lids
    app-img
  • Various types of lids
    app-img
  • Various types of lids
    app-img
  • Various types of lids
    app-img
  • Various types of lids
    app-img
