Manufacturer for Large Thermoforming Machine - PLC Pressure Thermoforming Machine With Three Stations HEY01 – GTMSMART Detail:

Product Introduction

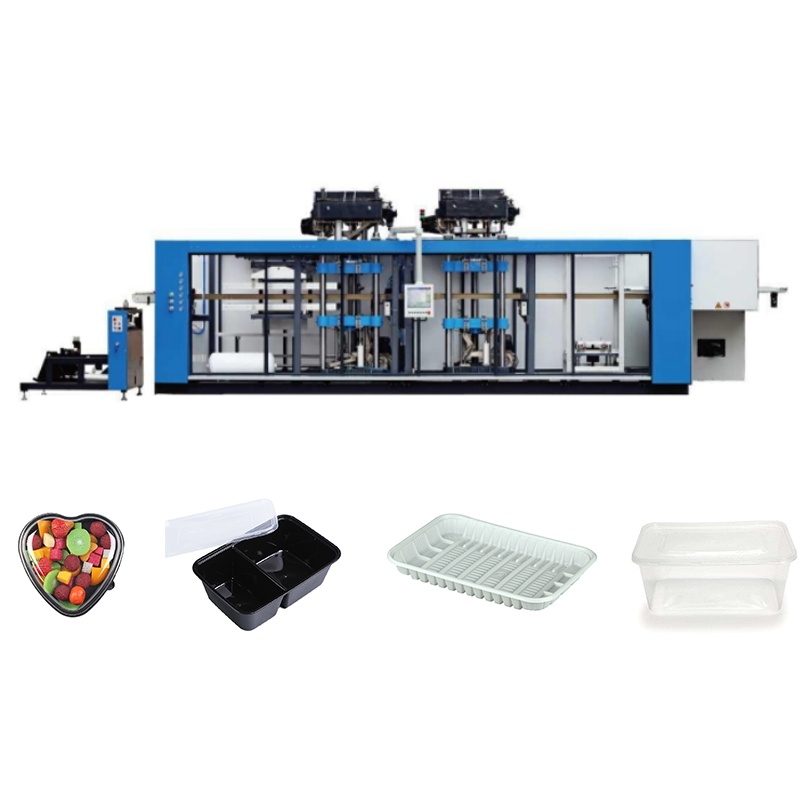

This Pressure Thermoforming Machine Mainly for the production of variety plastic containers ( egg tray, fruit container, food container, package containers, etc) with thermoplastic sheets, such as PP,APET, PS, PVC, EPS, OPS, PEEK, PLA, CPET,etc.

Feature

1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.
3. Thermoforming Machine: Upper and down mould forming.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, four sections heating.
6. Heater with intellectual temperature control system,which has high precision, uniform temperature, won’t be effected by outer voltage.Low power consumption (energy saving 15%), ensure the longer service life of heating furnace.
7. Forming and cutting unit mold open and close controlled by servo motor, products automatically count.
8. Products be stacked downward.
9. Plastic Thermoforming Machine: data memorization function.
10. Feeding width can be synchronously or independently adjusted in electrical way.
11. Heater will automatically push-out when the sheet is over.
12. Auto roll sheet loading, reduce the working load.

Plastic Thermoforming Machine Key Specification

Model	HEY01-6040	HEY01-6850			HEY01-7561
Max.Forming Area (mm2)	600×400	680×500			750×610
3 Stations	Forming, Cutting, Stacking
Sheet Width (mm)	350-720
Sheet Thickness (mm)	0.2-1.5
Max. Dia. Of Sheet Roll (mm)	800
Forming Mould Stroke(mm)	Upper Mould 150, Down Mould 150
Power Consumption	60-70KW/H
Forming Mould Width (mm)	350-680
Max. Formed Depth (mm)	100
Cutting Mould Stroke(mm)	Upper Mould 150,Down Mould 150
Max. Cutting Area (mm2)	600×400		680×500	750×610
Cutting Force （ton）	40
Dry Speed (cycle/min)	Max 30
Product Cooling Method	By Water Cooling
Vacuum Pump	UniverstarXD100
Power Supply	3 phase 4 line  380V50Hz
Max. Heating Power	121.6
Max. Power of Whole Machine (kw)	150
Max. Machine Dimension(L*W*H) (mm)	11150×2300×2700
Weight of Whole Machine ( T )	≈11

Brand of Main Components

PLC	Taiwan Delta
Touch Screen Monitor (10 inch)	Taiwan Delta
Feeding Servo Motor (3kw)	Taiwan Delta
Forming Down Mould Servo Motor (3kw)	Taiwan Delta
Forming Upper Mould Servo Motor (3kw)	Taiwan Delta
Cutting Down Mould Servo Motor (3Kw)	Taiwan Delta
Cutting Upper Mould Servo Motor (5.5Kw)	Taiwan Delta
Stacking Servo Motor(1.5Kw)	Taiwan Delta
Heater (192 pcs)	TRIMBLE
AC Contactor	French Schneider
Thermo Relay	Schneider
Intermediate Relay	Japan Omron
Air Switch	South Korea LS
Pneumatic Component	MAC. AirTAC/ ZHICHENG
Cylinder	China ZHICHENG



20 years experience

GTMSMART Machinery Co., Ltd. is an innovative technology enterprise integrating technology, industry and trade. It mainly develops and produces various types of high-precision automatic production equipment.

The newly developed GTM series of fully automatic air pressing molding production line includes: feeding unit, pre-heating unit, forming unit, vertical blanking unit, stack unit, scrap winding unit, punching cutting and stacking three-in-one horizontal blanking unit, online labeling unit, etc., which can be combined with flexible production line according to different production requirements of customers.

---

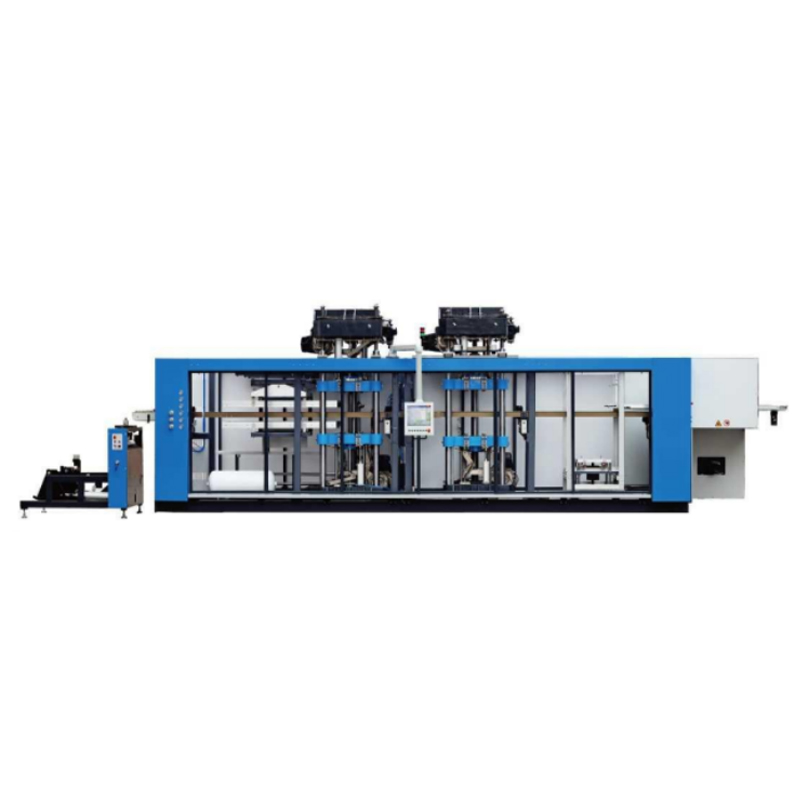

Product detail pictures:

---
