Biodegradable PLA Disposable Plastic Cup Making Machine

Application

Biodegradable cup making machine mainly for the production of variety plastic containers ( jelly cups, drink cups, package containers, etc) with thermoplastic sheets, such as PP, PET, PE, PS, HIPS, PLA,etc.

Supply Sheet Rack

Feeding Reducer with Motor	Worm Gear Reducer (Supror)
Pneumatic Pressure	AirTAC Cylinder SC63×25=2个
Pneumatic Feeding Sheet	AirTAC Cylinder SC100×150=2个

Main Technical Parameter

(Model)	HEY12-6835	HEY12-7542	HEY12-8556
Forming Area	680*350mm	750*420 mm	850*560 mm
Sheet Width	<680 mm	<750 mm	<850 mm
Max. Forming Depth	<180 mm	<220 mm	<180 mm
Heating Rated Power	130kw	140kw	150kw
Dimension	5200*2000*2800mm	5400*2000*2800mm	5500*2000*2800mm
Machine Total Weight	7T	8T	9T
Applicable Raw Material	PP, PS, PET, HIPS, PE, PLA(biodegradable)
Sheet Thickness	0.2-3.0 mm
Work Frequency	<35
Motor Power	15kw
Power Supply	Three Phase 380V/50HZ
Pressure Supply	0.6-0.8 Mpa
Max.air Consumption	3.8
Water Consumption	20M3/h
Control System	PLC Delta

Electric Control

Human-computer Interface	Delta
PLC	Delta
Servo Stretching Motor	Delta 11KW servo driver+servo motor
Servo Folding Motor	Delta 15KW servo driver+servo motor



Forming Station

1.Plastic PLA biodegradable cup making machine standard square tube frame with 100*100, mould is casted steel and upper mould is fixed by nut.
2.Opening and closing mould driven by eccentric gear connecting rod.
Driving power by 15KW (Japan Yaskawa) servo motor, American KALK Reducer,
main axis use HRB bearings.
3.Biodegradable cup making machine main pneumatic component use SMC(Japan) magnetic.
4.Sheet feeding device with planetary gear reducer motor, 4.4KW Siemens servo controller.
5.Stretching device uses 11KW Siemens servo.
6.Lubrication device is fully automatic.
7.Caterpillars adopt fully enclosed structure, with cooling device and can manually adjust sheet width.
8.Heating system uses China ceramic far-infrared heaters, stainless steel upper and down heating furnace, upper heater with 12 pcs heating pads vertically and 8 pcs heating pads horizontally , down heater with 11 pcs heating pads vertically and 8 pcs heating pads horizontally.
(specification of heating pad is 85mm*245mm);
Electric furnace push-out system uses 0.55KW worm gear reducer and ball screw, which is more stable
and also protect the heater pads.
9.Biodegradable plastic cup making machine air filtration uses triplet, blowing cup can adjust airflow.
10.Folding mould is consist of fixed upper plate、flexible mid plate and 4 pillars with surface hard chrome plating 45#.
11.Eccentric is the construction of connecting rod fold mould, with running range ≤ 240mm.
12.Electric heating furnace could be moved horizontally and vertically freely by guide-rail from Hiwin Taiwan.
13.Plastic cup making machine: Toping cups is controlled by AirTAC (Taiwan) cylinder.

Waste Edge Winding Device

1.On-line winding

2. Reducer with 0.75KW motor (1pc)

---

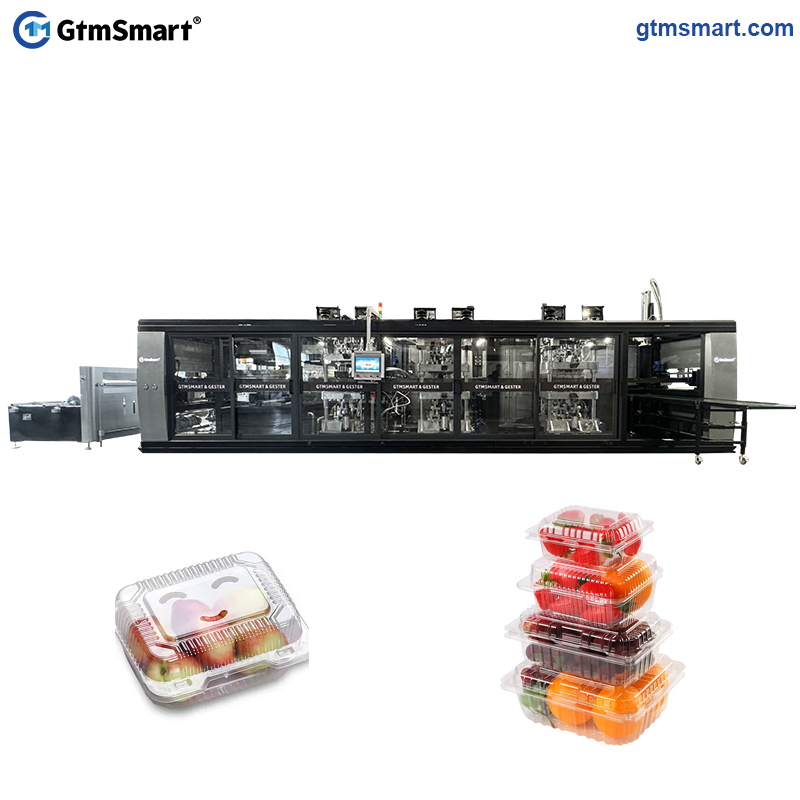

Product detail pictures:

---
