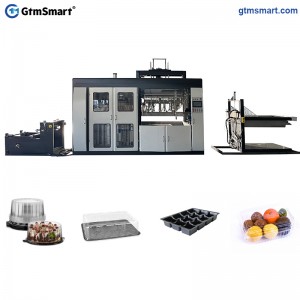

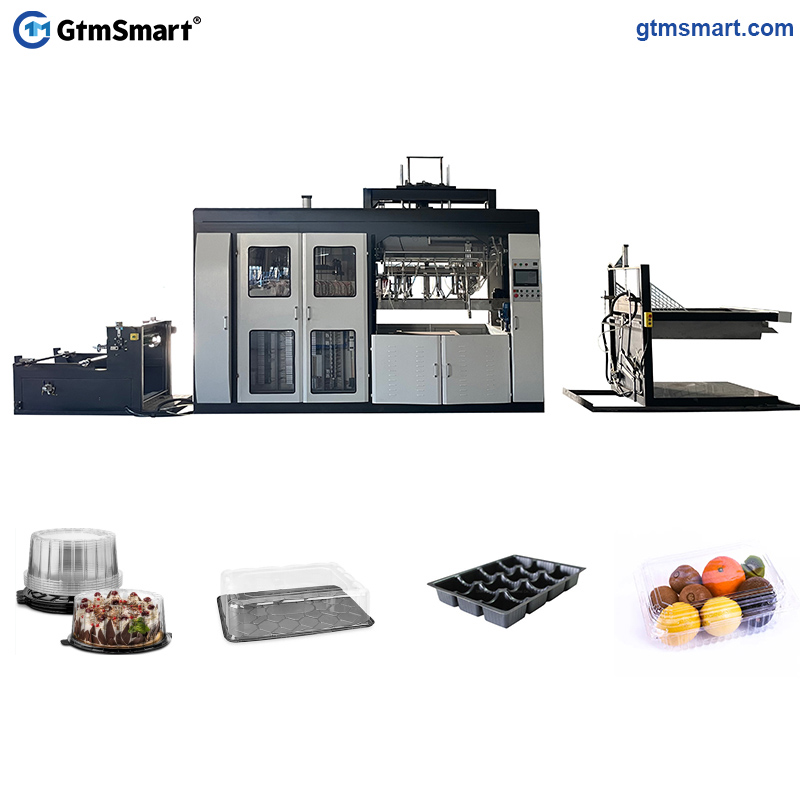

Vacuum Thermoforming Machine Description
Vacuum forming, also known as thermoforming, vacuum pressure forming or vacuum molding, is a procedure in which a sheet of heated plastic material is shaped a certain way.
PLC Automatic Plastic vacuum Forming Machine: Mainly for the production of variety plastic containers ( egg tray, fruit container, package containers, etc) with thermoplastic sheets, such as PET, PS, PVC etc.
Product Advantages
- This Vacuum Forming Machine Utilizes PLC control system, servo drives upper and lower mould plates, and servo feeding, which would be more stable and precision.
-
Human-computer interface with high definition contact-screen, which can monitor the operation situation of all parameter setting.
- The Plastic vacuum forming machine Applied self-diagnosis function, which can real-time display breakdown information, easy to operate and maintenance.
- The pvc vacuum forming machine can store several product parameters, and the debugging is quick when producing different products.
Automatic Vacuum Forming Machine Specifications
| Model |
HEY05B |
| Working Station |
Forming, Stacking |
| Applicable Material |
PS, PET, PVC, ABS |
| Max. Forming Area (mm2) |
1350*760 |
| Min. Forming Area (mm2) |
700*460 |
| Max. Formed Depth (mm) | 130 |
| Sheet Width (mm) | 490~790 |
| Sheet Thickness (mm) | 0.2~1.2 |
| Accuracy of Sheet Transport (mm) | 0.15 |
| Max. Working Cycle (cycles/minute) | 30 |
| Stroke of Upper/Lower Mold (mm) | 350 |
| Length of Upper/Lower Heater (mm) | 1500 |
| Max. Capacity of Vacuum Pump (m3/h) | 200 |
| Power Supply | 380V/50Hz 3 Phrase 4 Wire |
| Dimension (mm) | 4160*1800*2945 |
| Weight (T) | 4 |
| Heating Power(kw) | 86 |
| Power of Vacuum Pump (kw) | 4.5 |
| Power of Driving Motor (kw) | 4.5 |
| Power of Sheet Motor (kw) | 4.5 |
| Total Power(kw) | 120 |
