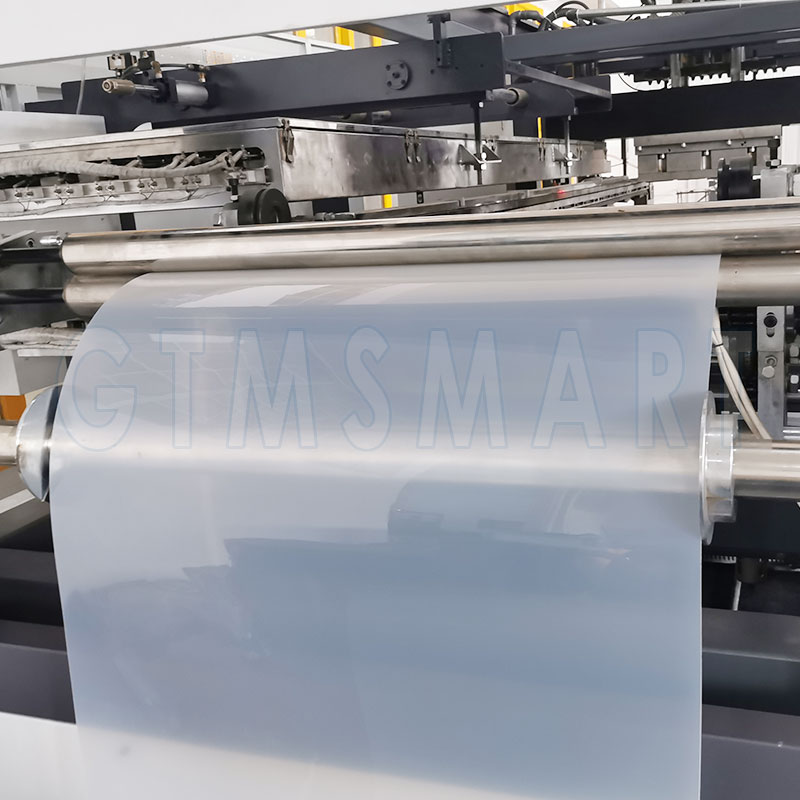

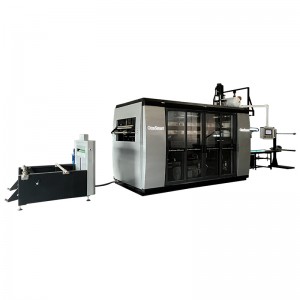

Full Servo Plastic Cup Making Machine
cup making machine Application

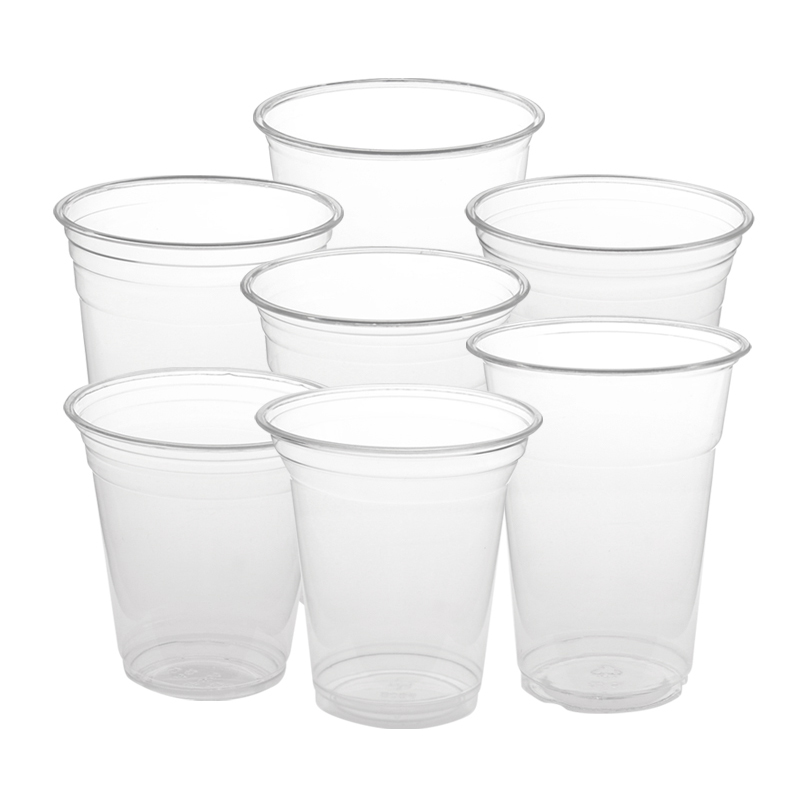

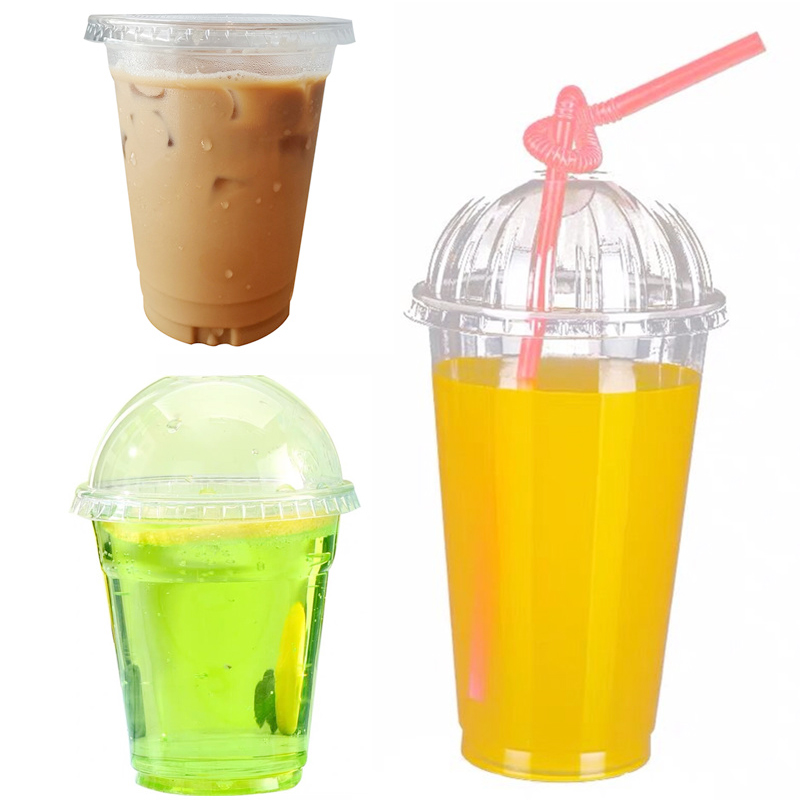

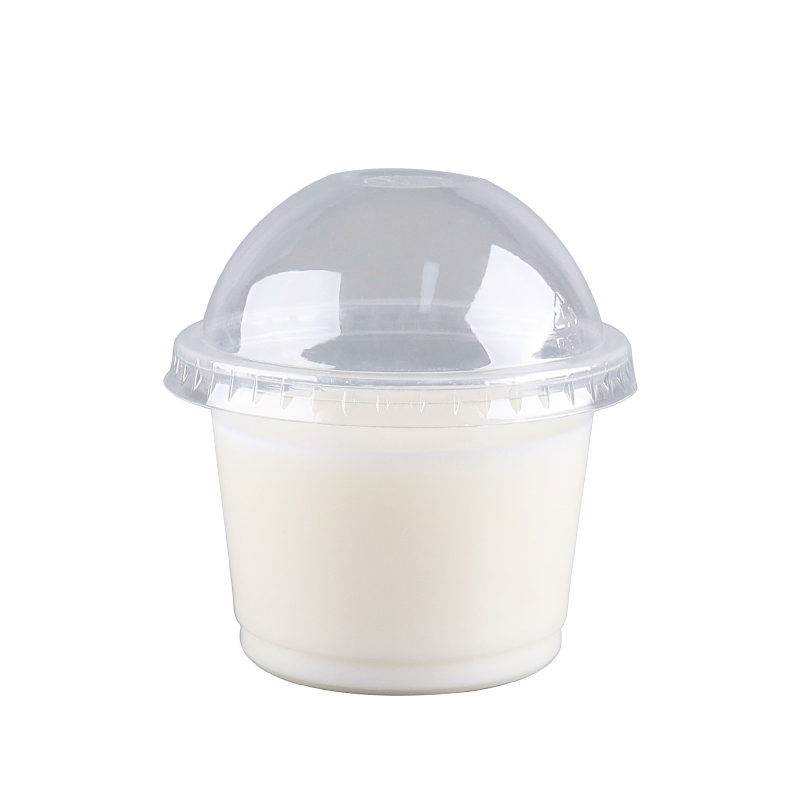

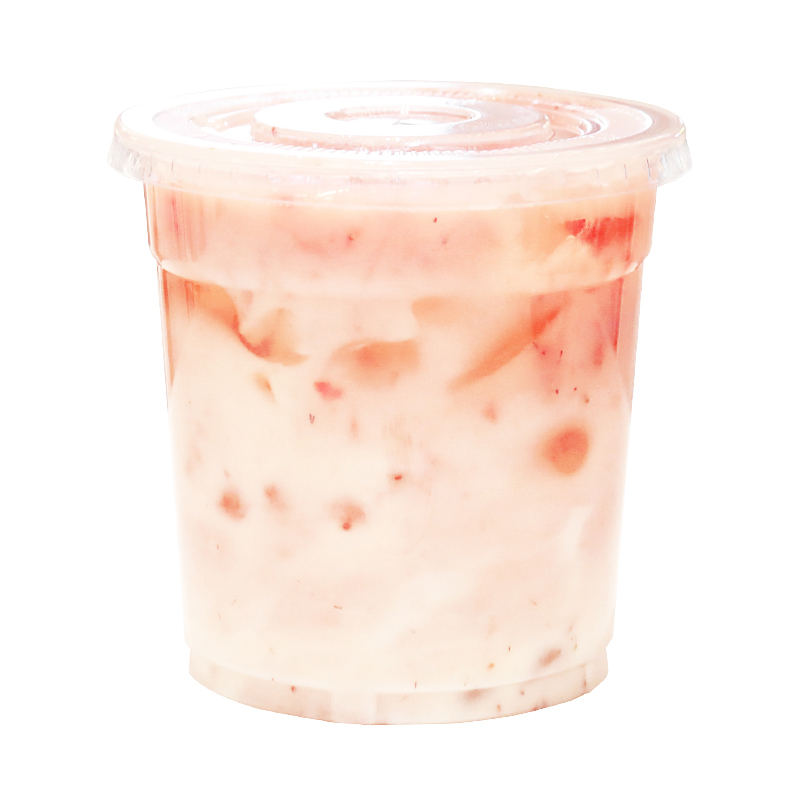

The cup making machine is Mainly for the production of variety plastic containers ( jelly cups, drink cups, package containers, etc) with thermoplastic sheets, such as PP, PET, PE, PS, HIPS, PLA,etc.
Cup Making Machine Technical Specifications
| Model |
HEY12-6835 |
HEY12-7542 |
| Max.Forming Area (mm2) |
680*350 |
750x420 |
| Working Station |
Forming, Cutting, Stacking |
|
| Applicable Material |
PS, PET, HIPS, PP, PLA, etc |
|
| Sheet Width (mm) | 380-810 | |
| Sheet Thickness (mm) | 0.3-2.0 | |
| Max. Forming Depth (mm) | 200 | |
| Max. Dia. Of Sheet Roll (mm) | 800 | |
| Mould Stroke(mm) | 250 | |
| Length of upper heater (mm) | 3010 | |
| Length of lower heater (mm) | 2760 | |
| Max. Mold Closing Force (T) | 50 | |
| Speed (cycle/min) | Max. 32 | |
| Accuracy of Sheet Transport(mm) | 0.15 | |
| Power Supply | 380V 50Hz 3 phase 4 wire | |
| Heating Power (kw) | 135 | |
| Total Power (kw) | 165 | |
| Machine Dimension (mm) | 5375*2100*3380 | |
| Sheet Carrier Dimension (mm) | 2100*1800*1550 | |
| Weight of Whole Machine (T) | 10 | |
BRAND of COMPONENTS
| PLC | DELTA | |
| Touch Screen | MCGS | |
| Servo Motor | DELTA | |
| Asynchronous Motor | CHEEMING | |
| Frequency Converter | DELIXI | |
| Transducer | OMDHON | |
| Heating Brick | TRIMBLE | |
| AC Contactor | CHNT | |
| Thermo Relay | CHNT | |
| Intermediate Relay | CHNT | |
| Solid-state Relay | CHNT | |
| Solenoid Valve | AirTAC | |
| Air Switch | CHNT | |
| Air Cylinder | AirTAC | |
| Pressure Regulating Valve | AirTAC | |
| Grease Pump | BAOTN | |
Applications
