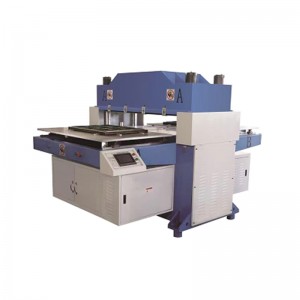

Full Plate Blanking Bilateral Feeding Cutter Blister Plastic Cutting Machine HEY22
Model: HEY22
Application
This cutting machine is suitable for cutting various kinds of large space products in plastic industry, plastic packaging and other products.
Main Features
- Plastic cutting machine adopts PLC computer control, touch screen type displayer, easy in operation and convenient.
- Large tonnage, large area, it is suitable for full sheet blanking of suction plastic products, to solve the traditional small tonnage presses a cut defects, saving time and increasing the yield.
- Feeding system adopts servo motor transmission, high speed, accurate in delivery, especially suitable for accuracy requirement of top/bottom mould, solving the traditional manual moving mould, saving time and improving production efficiency.
- This blister plastic cutting machine: Hydraulic system adopts high pressure oil pump control, soft pressure. It is capable for stainless steel plate blanking, solving nylon plate blanking of products, which causes secondary pollution and waste, improving the cleanliness of products, reducing material waste, improving the rate of qualified products. The system solves the defects of traditional mechanical damage and waste of violent punching the knife die, prolonging the service life of die cutter, cost-saving in knife mould.
Technical Parameters
| Motor Power | 7.5KW |
| Cutting Pressure | 125T |
| Cutting Space | 1300*750 mm |
| Speed | 60 mm/s |
| Bottom Speed | 65 mm/s |
| Platform Size | 1400*800 mm |
| Distance Between lop Press Board To Platform | 200 mm |
| Stroke Regulation Range | 170 mm |
| Outer Dimension | 3150*2010*1800 mm (Length*width*height ) |
| Machine Total Weight | 5400kg |
| Cutting Speed | 15*2 plate/min |
