China factory supply 3 station plastic thermoforming machine

We pursue the administration tenet of “Quality is superior, Services is supreme, Standing is first”, and will sincerely create and share success with all customers for China factory supply 3 station plastic thermoforming machine, We are also consistently seeking to determine partnership with new suppliers to provide innovative and smart alternative to our valued shoppers.
We pursue the administration tenet of “Quality is superior, Services is supreme, Standing is first”, and will sincerely create and share success with all customers for Cosmetic Tray Thermoforming Machine, Plastic Pet Thermoforming Machine Company, Sushi Box Thermoforming Machine, It using the world’s leading system for reliable operation, a low failure rate, it suitable for Argentina customers choice. Our company is situated within the national civilized cities, the traffic is very convenient, unique geographical and economic conditions. We pursue a people-oriented, meticulous manufacturing, brainstorm, build brilliant” business philosophy. Strict quality management, perfect service, reasonable price in Argentina is our stand on the premise of competition. If necessary, welcome to contact us by our website or phone consultation, we’ll be happy to serve you.

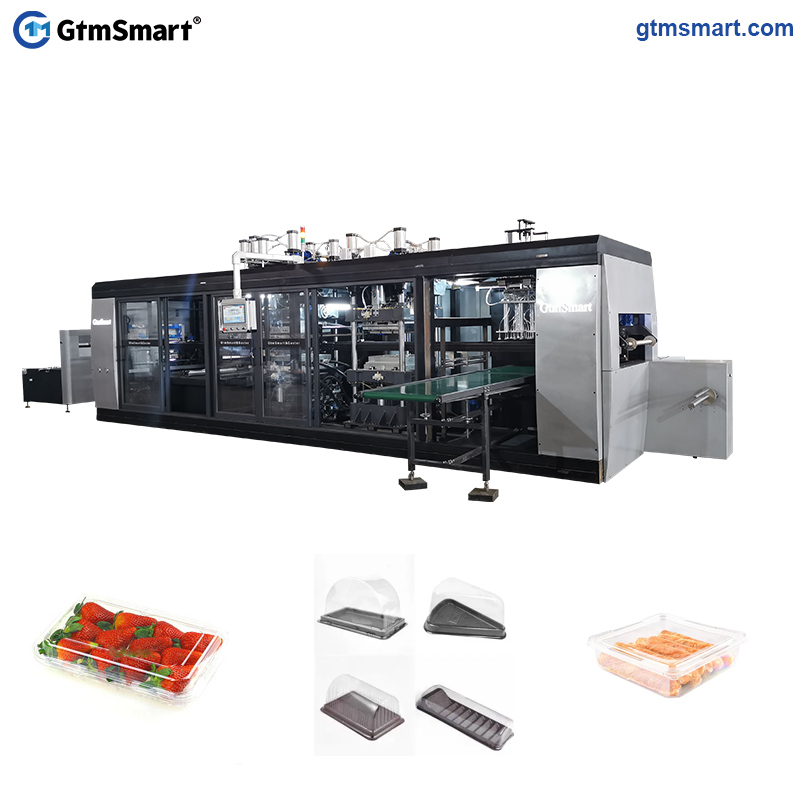

PLC Pressure Thermoforming Machine With Three Stations HEY01

Product Introduction

This Pressure Thermoforming Machine Mainly for the production of variety plastic containers ( egg tray, fruit container, food container, package containers, etc) with thermoplastic sheets, such as PP, PS, PLA, PET etc.

Feature

1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.
3. Thermoforming Machine: Upper and down mould forming.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, four sections heating.
6. Heater with intellectual temperature control system,which has high precision, uniform temperature, won’t be effected by outer voltage.Low power consumption (energy saving 15%), ensure the longer service life of heating furnace.
7. Forming and cutting unit mold open and close controlled by servo motor, products automatically count.
8. Products be stacked downward.
9. Plastic Thermoforming Machine: data memorization function.
10. Feeding width can be synchronously or independently adjusted in electrical way.
11. Heater will automatically push-out when the sheet is over.
12. Auto roll sheet loading, reduce the working load.

Plastic Thermoforming Machine Key Specification

Model	HEY01-6040	HEY01-7860
Max.Forming Area (mm2)	600×400	780×600
Working Station	Forming, Cutting, Stacking
Applicable Material	PS, PET, HIPS, PP, PLA, etc
Sheet Width (mm)	350-810
Sheet Thickness (mm)	0.2-1.5
Max. Dia. Of Sheet Roll (mm)	800
Forming Mould Stroke(mm)	120 for up mold and down mold
Power Consumption	60-70KW/H
Max. Formed Depth (mm)	100
Cutting Mould Stroke(mm)	120 for up mold and down mold
Max. Cutting Area (mm2)	600×400	780×600
Max. Mold Closing Force (T)	50
Speed (cycle/min)	Max 30
Max. Capcity of Vacuum Pump	200 m³/h
Cooling System	Water Cooling
Power Supply	380V 50Hz  3 phase 4 wire
Max. Heating Power (kw)	140
Max. Power of Whole Machine (kw)	160
Machine Dimension(mm)	9000*2200*2690
Sheet Carrier Dimension(mm)	2100*1800*1550
Weight of Whole Machine (T)	12.5



Brand of Main Components

PLC	DELTA
Touch Screen	MCGS
Servo Motor	DELTA
Asynchronous Motor	CHEEMING
Frequency Converter	DELIXI
Transducer	OMDHON
Heating Brick	TRIMBLE
AC Contactor	CHNT
Thermo Relay	CHNT
Intermediate Relay	CHNT
Solid-state Relay	CHNT
Solenoid Valve	AirTAC
Air Switch	CHNT
Air Cylinder	AirTAC
Pressure Regulating Valve	AirTAC

10+ years experience

GTMSMART Machinery Co., Ltd. is an innovative technology enterprise integrating technology, industry and trade. It mainly develops and produces various types of high-precision automatic production equipment.

The newly developed GTM series of fully automatic air pressing molding production line includes: feeding unit, pre-heating unit, forming unit, vertical blanking unit, stack unit, scrap winding unit, punching cutting and stacking three-in-one horizontal blanking unit, online labeling unit, etc., which can be combined with flexible production line according to different production requirements of customers.China factory supply 3 station plastic thermoforming machine. We pursue the administration tenet of “Quality is superior, Services is supreme, Standing is first”, and will sincerely create and share success with all customers.

plastic PET thermoforming machine company, cosmetic tray thermoforming machine, sushi box thermoforming machine, It using the world’s leading system for reliable operation, a low failure rate. Strict quality management, perfect service, reasonable price is our stand on the premise of competition. If necessary, welcome to contact us by our website or phone consultation, we’ll be happy to serve you.

---
