Application
This product is suitable for blanking operations of various large-area products such as plastic absorbing industry and food packaging, and can be automatically grasped and counted by a manipulator.
Main Features
- It adopts PLC computer control, touch screen type displayer, easy in operation and convenient.
- Large tonnage, large area, it is suitable for full sheet blanking of suction plastic products, to solve the traditional small tonnage presses a cut defects, saving time and increasing the yield.
- Bilateral automatic sheet feeding system, it is capable to blank different heights of products from both sides. The machine is operated by two persons, dual-use, cost-effective, saving the workshop space and improving the yield.
- Feeding system adopts servo motor transmission, high speed, accurate in delivery, especially suitable for accuracy requirement of top/bottom mould, solving the traditional manual moving mould, saving time and improving production efficiency.
- Hydraulic system adopts high pressure oil pump control, soft pressure. It is capable for stainless steel plate blanking, solving nylon plate blanking of products, which causes secondary pollution and waste, improving the cleanliness of products, reducing material waste, improving the rate of qualified products. The system solves the defects of traditional mechanical damage and waste of violent punching the knife die, prolonging the service life of die cutter, cost-saving in knife mould.

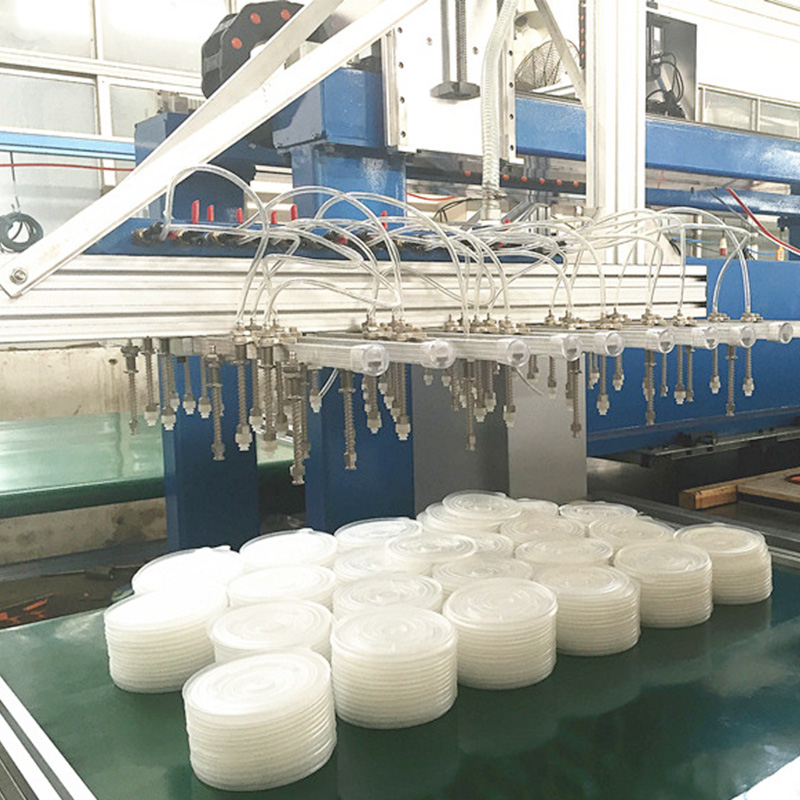

- Unique automatic manipulator feeding design, suitable for a variety of products sheet blanking operations, automatic manipulator feeding stacking count, solve a large number of manual counting of packaging costs and secondary pollution, improve efficiency, save costs, ensure sanitation.
Technical Parameters
| Motor Power | 7.5KW |
| Cutting Pressure | 125T |
| Cutting Space | 1300x750 |
| lop Speed | 60 |
| Bottom Speed | 65 |
| Platform Size | 1400x800 |
| Distance Between Top Press Board lb Platform | 200 |
| Stroke Regulation Range | 170 |
| Outer Dimension | 3150 x 3500 x 2800 |
| Machine Total Weight | 5800kg |
| Cutting Speed | 7/min |
