We stick to the principle of "quality to start with, service initially, continual improvement and innovation to meet the customers" for your administration and "zero defect, zero complaints" as the standard objective. To fantastic our service, we offer the products using the very good high quality at the reasonable price for Plastic Egg Container Thermoforming Machine, Plastic Vacuum Forming Machine, Plastic Vacuum Thermal Forming Machine, Thermo Vacuum Forming Machine Factories, Thermoforming Machine, Vacuum Forming Machine, Vacuum Forming Machines, Make sure you really feel free to send us your requirements and we'll respond to you asap. We now have got a qualified engineering group to serve for your just about every in depth needs. Cost-free samples could be sent for yourself personally to understand much more information. In an effort to meet your requires, remember to actually feel free to make contact with us. You may send us emails and contact us directly.
Vacuum forming, also known as thermoforming, vacuum pressure forming or vacuum molding, is a procedure in which a sheet of heated plastic material is shaped a certain way.

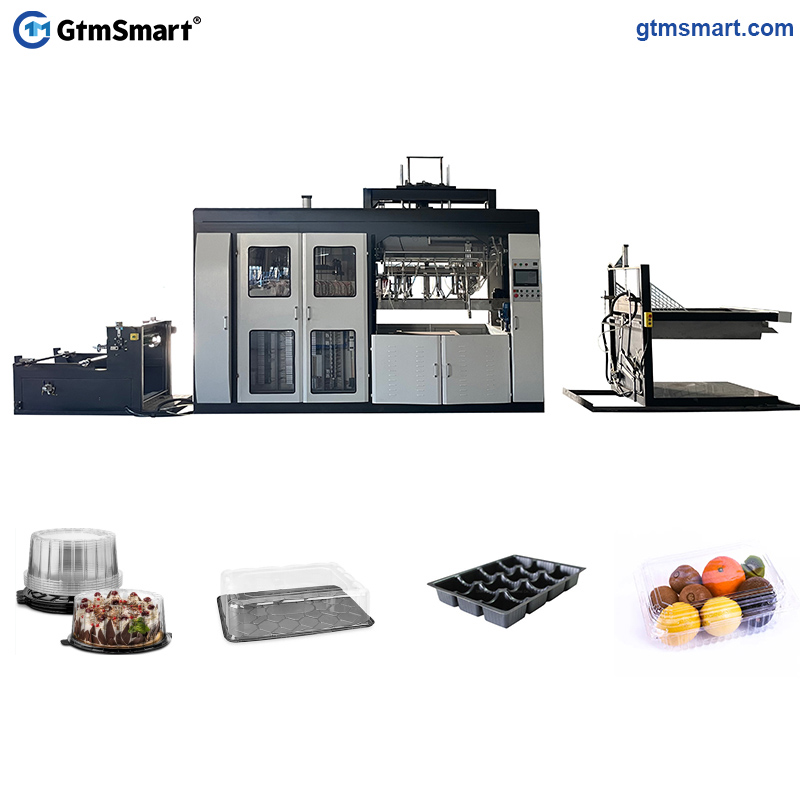

PLC Automatic Plastic vacuum Forming Machine: Mainly for the production of variety plastic containers ( egg tray, fruit container, package containers, etc) with thermoplastic sheets, such as PET, PS, PVC etc.
Human-computer interface with high definition contact-screen, which can monitor the operation situation of all parameter setting.
| Model |
HEY05B |
| Working Station |
Forming, Stacking |
| Applicable Material |
PS, PET, PVC, ABS |
| Max. Forming Area (mm2) |
1350*760 |
| Min. Forming Area (mm2) |
700*460 |
| Max. Formed Depth (mm) | 130 |
| Sheet Width (mm) | 490~790 |
| Sheet Thickness (mm) | 0.2~1.2 |
| Accuracy of Sheet Transport (mm) | 0.15 |
| Max. Working Cycle (cycles/minute) | 30 |
| Stroke of Upper/Lower Mold (mm) | 350 |
| Length of Upper/Lower Heater (mm) | 1500 |
| Max. Capacity of Vacuum Pump (m3/h) | 200 |
| Power Supply | 380V/50Hz 3 Phrase 4 Wire |
| Dimension (mm) | 4160*1800*2945 |
| Weight (T) | 4 |
| Heating Power(kw) | 86 |
| Power of Vacuum Pump (kw) | 4.5 |
| Power of Driving Motor (kw) | 4.5 |
| Power of Sheet Motor (kw) | 4.5 |
| Total Power(kw) | 120 |
Automatic PS PET PVC ABS Plastic Egg Tray Food Containers Vacuum Forming Machine. We stick to the principle of "quality to start with, service initially, continual improvement and innovation to meet the customers" for your administration and "zero defect, zero complaints" as the standard objective. To fantastic our service, we offer the products using the very good high quality at the reasonable price, 10 years of experience, we have realized the importance of giving top quality solutions and also the ideal before-sales and after-sales solutions.
