Application

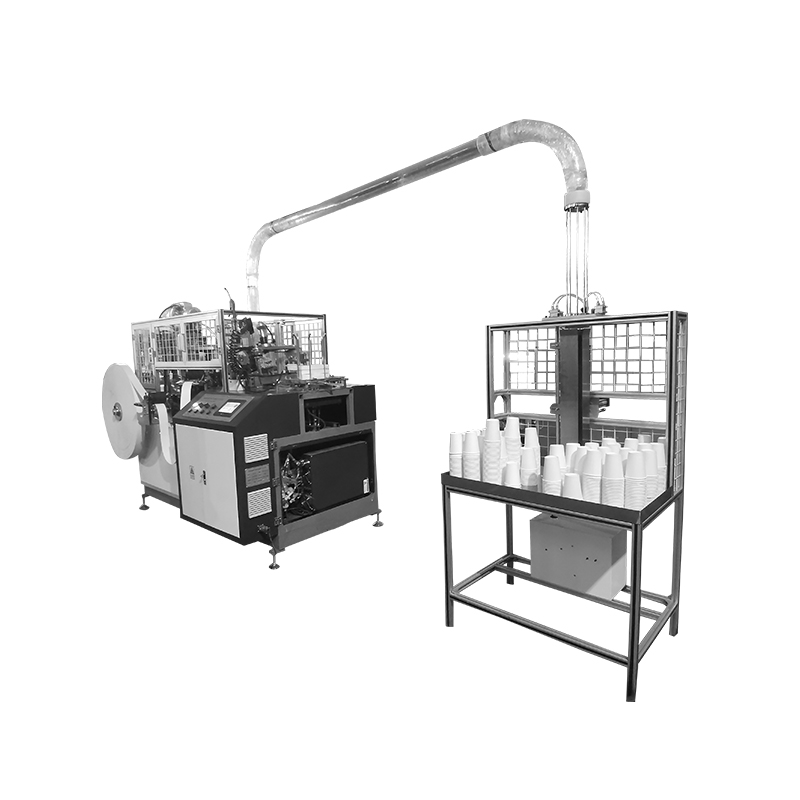

This paper cup machine mainly for the production of variety of paper cups.

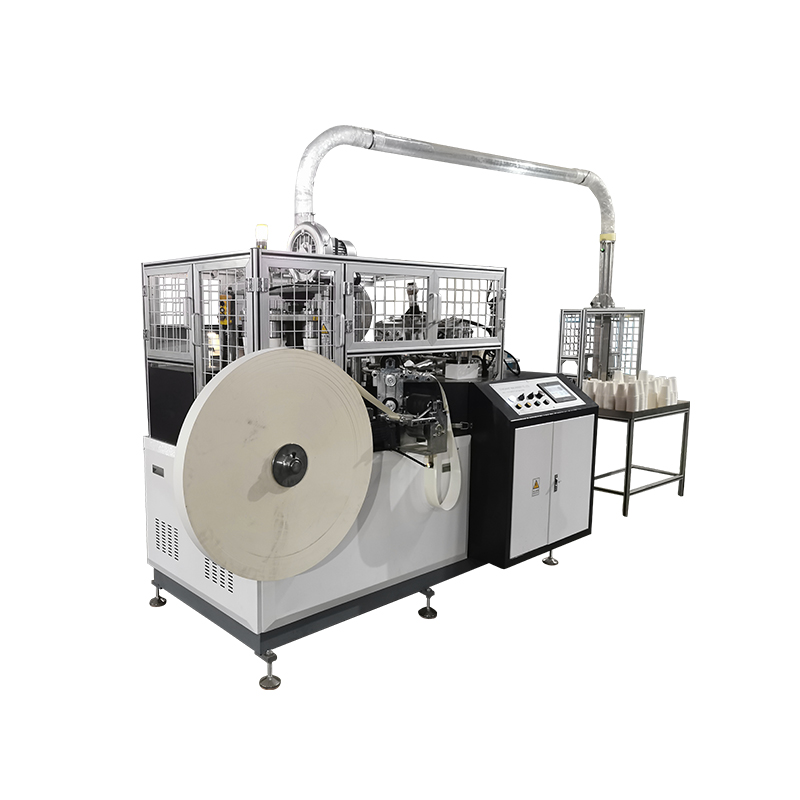

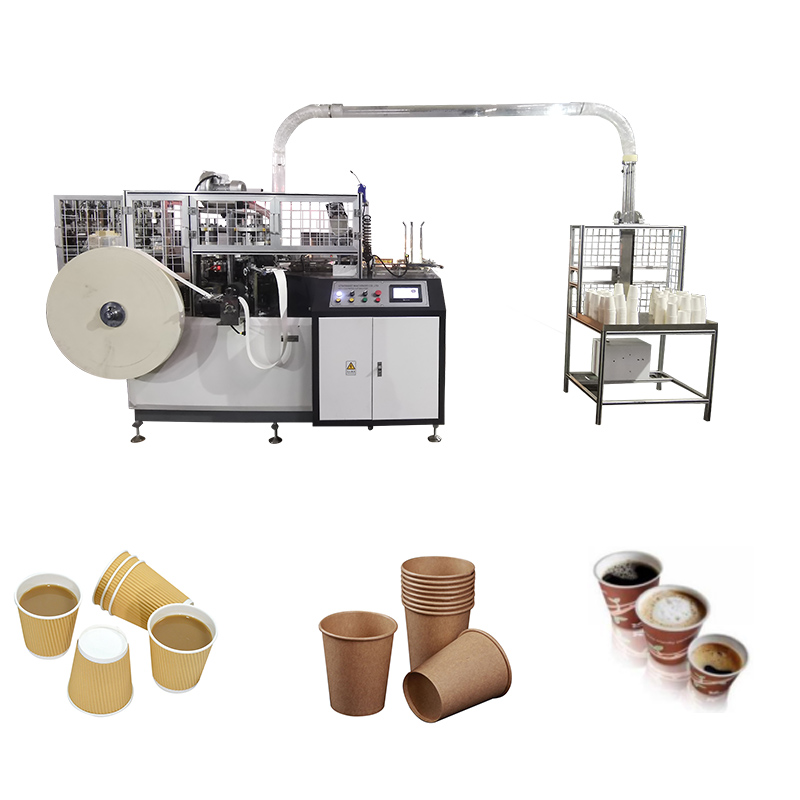

Paper Cup Forming Machine Technical Parameter
|
Paper Cup Size Range |
2 ~ 12OZ |
|
Speed |
85 ~ 100pc/min |
|
Paper Cup Top Diameter |
Min 45mm ~ Max 90mm |
|
Paper Cup Bottom Diameter |
Min 35mm ~ Max 70mm |
|
Paper Cup Height |
Min 32mm ~ Max 135mm |
|
Top Curling Rim Diameter |
2.5 ~ 3mm |
|
Bottom Curling Depth |
Min 4mm ~ Max 10mm |
|
Raw Material |
160 ~ 300160-300g/㎡;±20g/㎡, single PE or double PE coating paper |
|
General Power |
6KW |
|
Cup Side Sealing |
Ultrasonic |
|
Bottom Knurling |
HOT AIR SYETEM |
|
Power Supply |
380V 3 phases |
|
Working Air Source |
0.4-0.6Mpa; 0.4m³/min |
|
Weight |
2000 kg |
|
Dimension |
Main Machine: 210×120×180cm Cup Collecting Frame: 90×60×150cm |

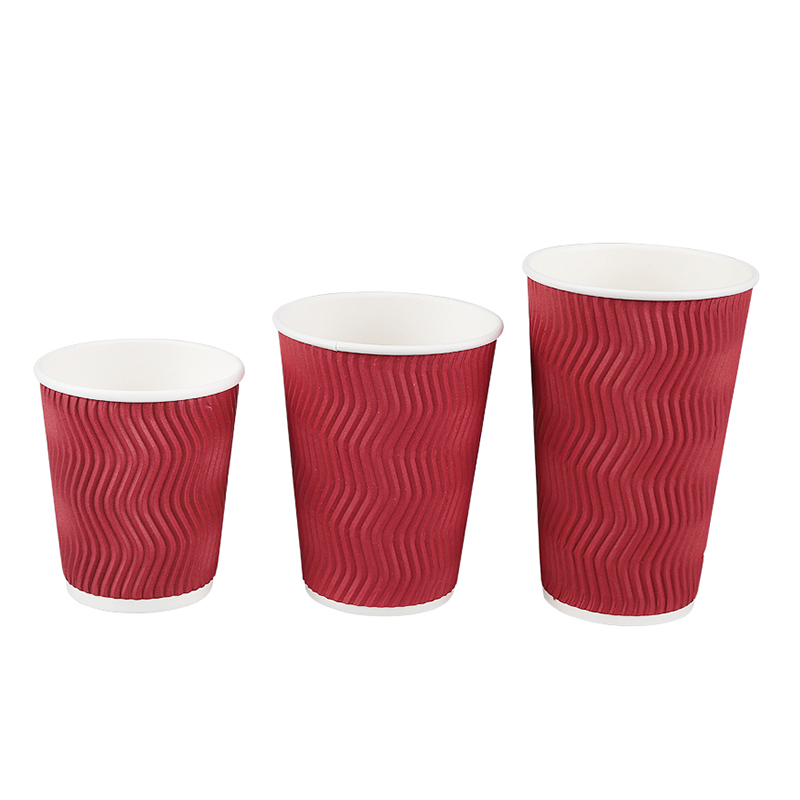

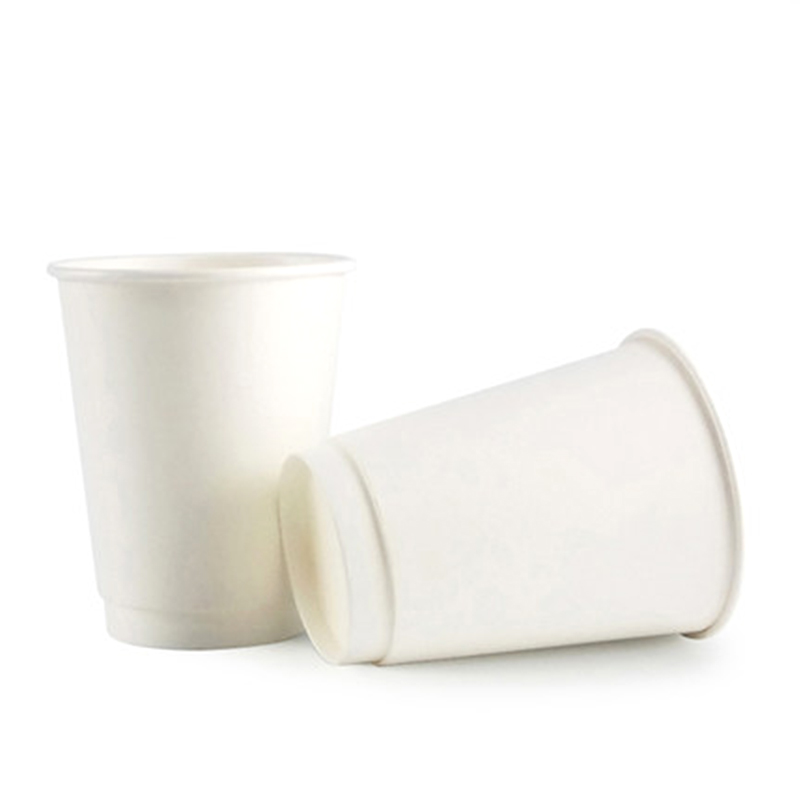

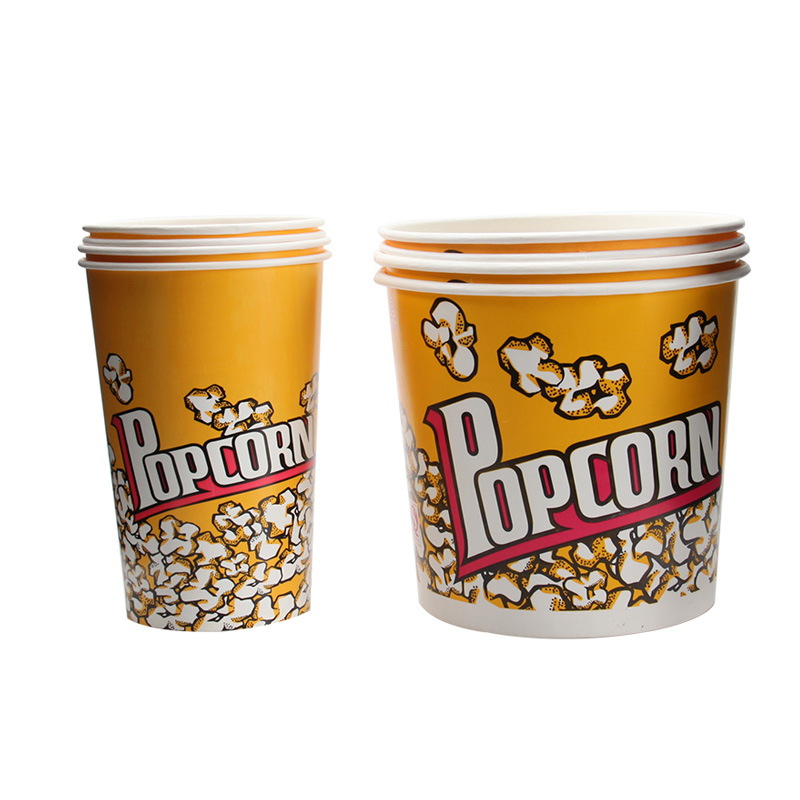

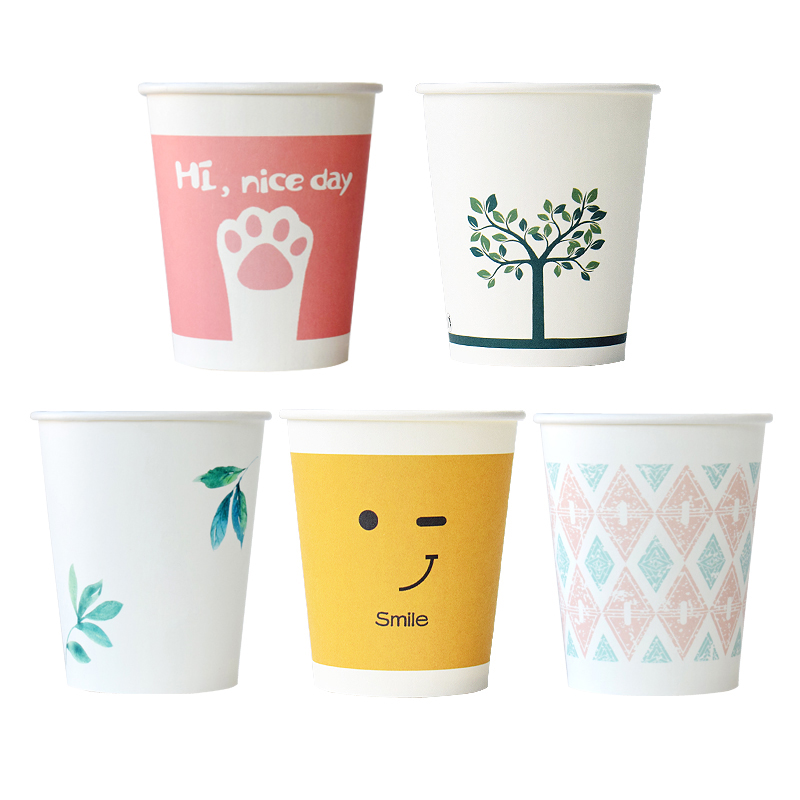

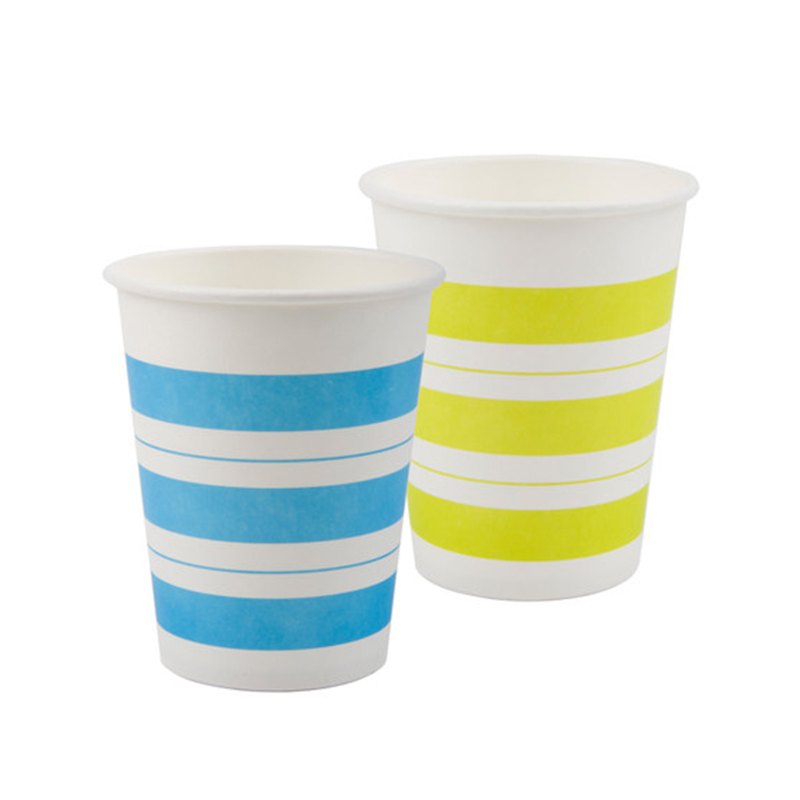

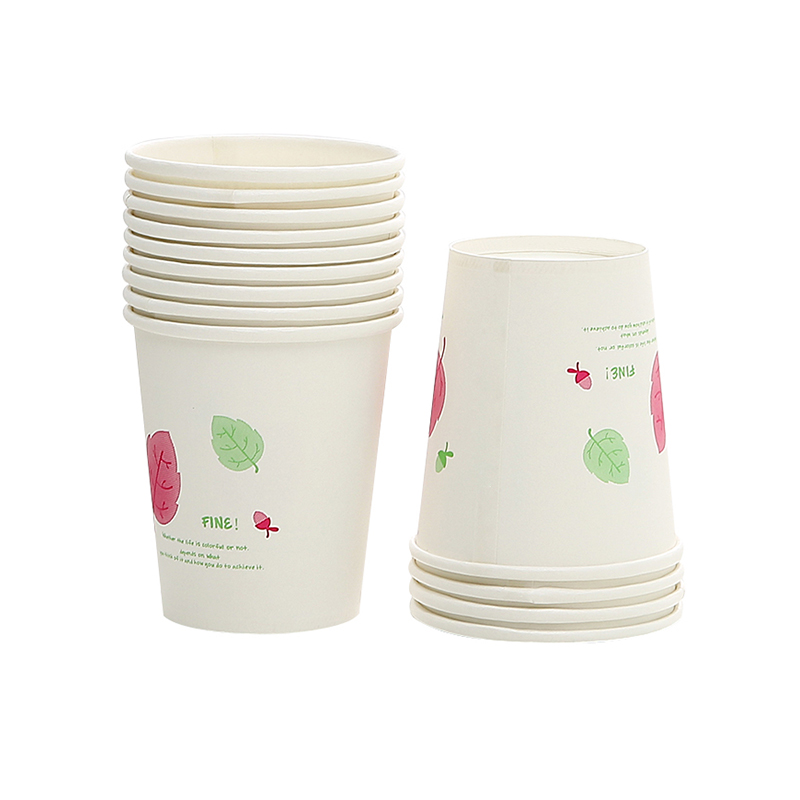

Applications
